Turbo Cascade™ - Thin Wall

Features and Specifications

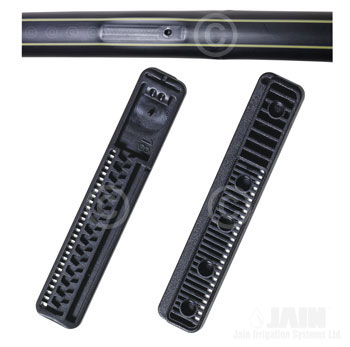

Seamless drip tape with drippers permanently fixed inside. Seamless construction improves ability to withstand pressure fluctuations.
Marked with two parallel yellow stripes ‘Twin- Line®’. Symbol of quality. It also helps to ensure upright positioning of the dripper.
Manufactured from special grade, virgin polymer ensuring close dimensional tolerance and higher strength even at lower wall thickness.
Manufactured with the most modern, state-of-the-art equipment. It’s computerized continuous online quality control ensures reliable quality and consistent performance.
Innovative cascade labyrinth. Its hydrodynamically designed tooth structure helps to create double flow regime viz. central curving flow and turbulent cyclone in the dripper. This helps in continuous flushing of particles.
Three dimensional filter inlet, unique filtration surface enable clog free operation even under high clog risk conditions.
Precision laser drilled outlet holes.
Extremely low manufacturing coefficient of variation, CVm ensures high field emission uniformity.
Available in 12, 16, 17, 19 & 25 mm nominal diameter as per metric standard. 5/8”, 7/8”, 9/8” and 1-3/8” nominal diameter as per US standard.
Available in three discharge rates of 0.9, 1.4 and 3.5 lph at nominal operating pressure of 0.7 kg/cm² as per metric standard. 0.23, 0.37 and 0.93 gph at nominal operating pressure of 10 psi as per US standard.
Available in wall thickness ranging from 6mil to 25mil (0.15mm to 0.63mm).
Available in standard dripper spacing of 15, 20, 30, 40, 50, 60, 75, 90 and 100 cm. Any other spacing and group spacings are available on demand.
Specially designed Tape Lock™ fittings are available. Please refer to ‘Poly Fittings & Accessories’ page.
Minimum 100 micron filtration recommended. However required filtration type and precision depends upon quality of source water.

Applications

Recommended for closely spaced seasonal row crops like sugarcane, cotton, chilly, potato, ground nut, onion, vegetables, oil seeds, banana, strawberry, floriculture, etc.
Suitable for surface and subsurface applications.

Coil Lengths

Emitter Spacing		Nominal Diameter of 16 mm, 17 mm and 5/8"
Emitter Spacing		6 mil		8 mil		10 mil		12 mil		15 mil		18 mil		20 mil		25 mil
cm	inch	m	ft.	m	ft.	m	ft.	m	ft.	m	ft.	m	ft.	m	ft	m	ft.
15	6	2100	6888	2100	6888	2000	6560	1700	5576	1350	4428	1000	3280	900	2952	500	1640
20	8	2300	7544	2300	7544	2100	6888	1800	5904	1400	4592	1050	3444	950	3116	550	1804
25	10	2400	7872	2400	7872	2150	7052	1850	6068	1450	4756	1100	3608	1000	3280	600	1968
30+	12+	2700	8856	2500	8200	2250	7380	1900	6232	1500	4920	1150	3772	1000	3280	600	1968
Nominal Diameter of 7/8"
15	6	1300	4264	1100	3608	800	2624	900	2552	750	2460	650	2132	600	1968	350	1148
20	8	1500	4920	1300	4264	1000	3280	1000	3280	800	2624	700	2296	650	2132	350	1148
25	10	1600	5248	1400	4592	1100	3608	1050	3444	850	2788	750	2460	700	2296	400	1312
30+	12+	1800	5904	1500	4920	1200	3936	1100	3608	900	2952	800	2624	700	2296	450	1476
Note: 1 mil = 1/1000th part of an inch = 0.0254 mm. * Coil lengths are for coil size 560 x 280 mm (22” x 11”). Other coil sizes such as 350x160 mm (13.8” x 6.3”) and 560x160 mm (22” x 6.3”) are also available. Please contact for coil lengths of J- Turbo Cascade Mini 12, 19, 25 mm and 9/8”, 1–3/8”.

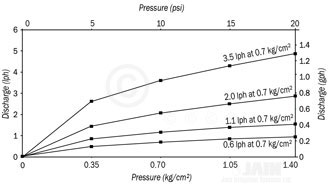

Technical Specifications for Emitter

Reference Code	Emitter Discharge				Emitter exponent	Flow Coefficient	Coeff. of mfgr. Variation
Reference Code	lph at 0.7 kg/cm²	lph at 1.0 kg/cm²	gph at 10 psi	gph at 14 psi	x	k	CVm
DMXXX09	0.90	1.10	0.23	0.29	0.46	0.80	4
DMXXX14	1.40	1.70	0.37	0.45	0.46	1.30	4.5
DMXXX35	3.50	4.0	0.93	1.06	0.46	4.00	2.0

Technical Specifications for Tubing - Metric

Nominal Diameter	Wall Thickness		Inside Diameter	Outside Diameter	Max. Operating Pressure	Max.Flushing Pressure
mm	mil	mm	mm	mm	kg/cm²	kg/cm²
Jain TurboCascade™ 12 mm Nominal Diameter
12	6	0.15	11.8	12.1	1.1	1.7
12	8	0.20	11.8	12.2	1.5	2.3
12	10	0.25	11.8	12.3	1.8	2.7
12	12	0.30	11.8	12.4	2.2	3.3
12	15	0.38	11.8	12.6	2.7	4.1
12	18	0.45	11.8	12.7	3.3	5.0
12	20	0.50	11.8	12.8	3.6	5.4
12	25	0.63	11.8	13.1	4.5	6.8
Jain TurboCascade™ 16 mm Nominal Diameter
16	6	0.15	15.9	16.2	0.8	1.2
16	8	0.20	15.9	16.3	1.1	1.7
16	10	0.25	15.9	16.4	1.4	2.1
16	12	0.30	15.9	16.5	1.6	2.4
16	15	0.38	15.9	16.7	2.0	3.0
16	18	0.45	15.9	16.8	2.4	3.6
16	20	0.50	15.9	16.9	2.7	4.1
16	25	0.63	15.9	17.2	3.4	5.1
Jain TurboCascade™ 17 mm Nominal Diameter
17	6	0.15	16.1	16.4	0.8	1.2
17	8	0.20	16.1	16.5	1.1	1.7
17	10	0.25	16.1	16.6	1.4	2.1
17	12	0.30	16.1	16.7	1.6	2.4
17	15	0.38	16.1	16.9	2.0	3.0
17	18	0.45	16.1	17.0	2.4	3.6
17	20	0.50	16.1	17.1	2.7	4.1
17	25	0.63	16.1	17.4	3.4	5.1
Jain TurboCascade™ 19 mm Nominal Diameter
19	6	0.15	19.0	19.3	0.7	1.1
19	8	0.20	19.0	19.4	0.9	1.4
19	10	0.25	19.0	19.5	1.1	1.7
19	12	0.30	19.0	19.6	1.4	2.1
19	15	0.38	19.0	19.8	1.7	2.6
19	18	0.45	19.0	19.9	2.0	3.0
19	20	0.50	19.0	20.0	2.3	3.5
19	25	0.63	19.0	20.3	2.8	4.2
Jain TurboCascade™ 25 mm Nominal Diameter
25	6	0.15	25.0	25.3	0.5	0.8
25	8	0.20	25.0	25.4	0.7	1.1
25	10	0.25	25.0	25.5	0.9	1.4
25	12	0.30	25.0	25.6	1.1	1.7
25	15	0.38	25.0	25.8	1.3	2.0
25	18	0.45	25.0	25.9	1.6	2.4
25	20	0.50	25.0	26.0	1.8	2.7
25	25	0.63	25.0	26.3	2.2	3.3
Note : 1 mil = 1/1000th part of an inch = 0.0254 mm.

Technical Specifications for Tubing - US

Nominal Diameter	Wall Thickness		Inside Diameter	Outside Diameter	Max. Operating Pressure	Max.Flushing Pressure
inch	mil	mm	inch	inch	psi	psi
Turbo Cascade™ - Thin Wall 5/8" Nominal Diameter
5/8	6	0.15	0.625	0.637	11	17
5/8	8	0.20	0.625	0.641	15	23
5/8	10	0.25	0.625	0.645	20	30
5/8	12	0.30	0.625	0.649	22	34
5/8	15	0.38	0.625	0.655	28	43
5/8	18	0.45	0.625	0.661	34	51
5/8	20	0.50	0.625	0.665	38	58
5/8	25	0.63	0.625	0.675	48	73
Turbo Cascade™ - Thin Wall 7/8 Nominal Diameter
7/8	6	0.15	0.875	0.887	8	13
7/8	8	0.20	0.875	0.891	11	17
7/8	10	0.25	0.875	0.895	14	21
7/8	12	0.30	0.875	0.899	17	26
7/8	15	0.38	0.875	0.905	21	32
7/8	18	0.45	0.875	0.911	25	38
7/8	20	0.50	0.875	0.915	28	43
7/8	25	0.63	0.875	0.925	34	51
Turbo Cascade™ - Thin Wall 9/8 Nominal Diameter
9/8	6	0.15	1.125	1.425	7	10
9/8	8	0.20	1.125	1.525	9	12
9/8	10	0.25	1.125	1.625	11	15
9/8	12	0.30	1.125	1.725	13	20
9/8	15	0.38	1.125	1.9	16	24
9/8	18	0.45	1.125	2.0	20	29
9/8	20	0.50	1.125	2.1	22	33
9/8	25	0.63	1.125	2.4	27	41
Turbo Cascade™ - Thin Wall 1-3/8 Nominal Diameter
1-3/8	6	0.15	1.375	1.675	5	9
1-3/8	8	0.20	1.375	1.775	7	11
1-3/8	10	0.25	1.375	1.875	8	13
1-3/8	12	0.30	1.375	1.975	10	15
1-3/8	15	0.38	1.375	2.10	12	19
1-3/8	18	0.45	1.375	2.30	15	23
1-3/8	20	0.50	1.375	2.40	17	26
1-3/8	25	0.63	1.375	2.60	21	32
Note : 1 mil = 1/1000th part of an inch = 0.0254 mm.

Coil Lengths

Emitter Spacing		Nominal Diameter of 16 mm, 17 mm and 5/8"
Emitter Spacing		6 mil		8 mil		10 mil		12 mil		15 mil		18 mil		20 mil		25 mil
cm	inch	m	ft.	m	ft.	m	ft	m	ft	m	ft.	m	ft.	m	ft.	m	ft.
15	6	2100	6888	2100	6888	2000	6560	1700	5576	1350	4428	1000	3280	900	2952	500	1640
20	8	2300	7544	2300	7544	2100	6888	1800	5904	1400	4592	1050	3444	950	3116	550	1804
25	10	2400	7872	2400	7872	2150	7052	1850	6068	1450	4756	1100	3608	1000	3280	600	1968
30+	12+	2700	8856	2500	8200	2250	7380	1900	6232	1500	4920	1150	3772	1000	3280	600	1968
Nominal Diameter of 7/8"
15	6	1300	4264	1100	3608	800	2624	900	2552	750	2460	650	2132	600	1968	350	1148
20	8	1500	4920	1300	4264	1000	3280	1000	3280	800	2624	700	2296	650	2132	350	1148
25	10	1600	5248	1400	4592	1100	3608	1050	3444	850	2788	750	2460	700	2296	400	1312
30+	12+	1800	5904	1500	4920	1200	3936	1100	3608	900	2952	800	2624	700	2296	450	1476
Note: 1 mil = 1/1000th part of an inch = 0.0254 mm * Coil lengths are for coil size 560 x 280 mm (22” x 11”). Other coil sizes such as 350x160 mm (13.8” x 6.3”) and 560x160 mm (22” x 6.3”) are also available.Please contact for coil lengths of Jain Turbo Slim 12, 19, 25 mm and 9/8”, 1–3/8”.
