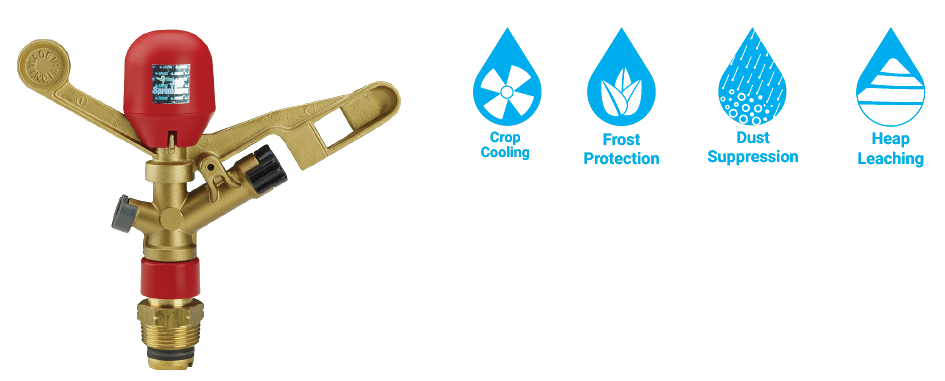

233 BS - Metal Impact Sprinkler, 1/2" Male or 3/4" Female

Features and Specifications:

  • High water distribution with spacing up to 18 m.

  • Colour-coded bayonet nozzle for easy service.

  • Integrated stream-straightening vane for maximum range.

  • Totally dependable new sand and dust protection sleeve for reliable operation and durability.

  • Metal impact sprinklers, 3/4 male.

    • Applications:

    • Suitable for field crops like pulses, oil seeds, vegetables, sugarcane, cotton, cereals, tea, coffee and fodder crops.

    Technical Specifications - 322 Dual Nozzle

    Nozzle Pressure Discharge Diameter Pressure (mm/h) / spacing (m)
    mm kg/cm² m³/hr m 12 x 12 12 x 15 12 x 18 18 x 18
    3.5 x 2.5
    Blue    		 3.0 1.170 27.0 8.1 6.5 5.4 3.6
    4.0 1.340 28.0 9.3 7.4 6.2 4.1
    5.0 1.490 28.5 10.3 8.3 6.9 4.6
    4.0 x 2.5
    Black    		 3.0 1.420 28.5 9.9 7.9 6.6 4.4
    4.0 1.630 29.0 11.3 9.1 7.5 5.0
    5.0 1.800 30.0 12.5 10.0 8.3 5.6
    4.5 x 2.5
    Brown    		 3.0 1.560 30.0 10.8 8.7 7.2 4.8
    4.0 1.780 32.0 12.4 9.9 8.2 5.5
    5.0 1.980 33.0 13.8 11.0 9.2 6.1
    5.0 x 2.5 *
    Purple    		 3.0 1.930 32.5 13.4 10.7 8.9 6.0
    4.0 2.200 34.5 15.2 12.2 10.1 6.8
    5.0 2.440 36.0 16.9 13.6 11.3 7.5
    5.5 x 2.5
    Orange    		 3.0 2.300 34.5 16.0 12.8 10.6 7.1
    4.0 2.630 35.5 18.3 14.6 12.2 8.1
    5.0 2.930 37.0 20.3 16.3 13.6 9.0
    6.0 x 2.5
    Red    		 3.0 2.700 34.5 18.9 15.0 12.5 8.3
    4.0 3.100 37.5 21.5 17.2 14.4 9.6
    5.0 3.500 37.5 24.3 19.5 16.2 10.8

    * Standard Nozzle

    CU = 85 - 88% CU = 88 - 92% CU < 85%

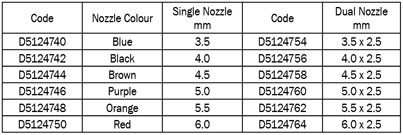

    Ordering Specifications
