Rainport Assembilies™

Rainport is an ultimate sprinkler irrigation system which overcomes all the limitations of conventional sprinkler irrigation system and yet meets the high standards of effective irrigation principles such as,

• High distribution uniformity.

• Controlled application rate.

• Gentle precipitation, low droplet impact on soil structure and no foliage damage.

• Short irrigation cycles to provide optimal growing conditions with highly accessible water and nutrient in controlled wetted and aerated soil profile.

Features and Specifications:

• Portable, can be quickly shifted from one place to other.

• Easy to roll back and relay.

• Energy efficient.

• Labour saving.

• Economical, low initial and operational costs.

• Savings in water and fertilizers.

• Helps to increase effective area under irrigation.

• Improves crop quality and gross yield.

• Flexibility in selection of sprinkler/mini sprinkler nozzles on the basis of required discharge, radius or precipitation rate.

• Available in two types,

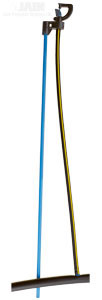

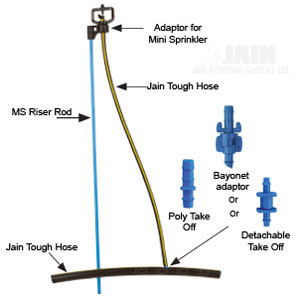

  - Rainport™ MS - to be used with low/medium discharge (up to 200 lph) sprinkler/mini sprinkler.

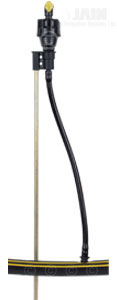

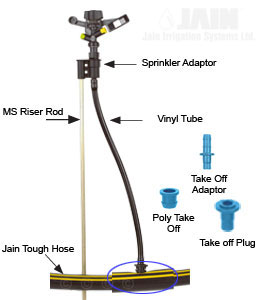

  - Rainport™ PS - to be used with high discharge (more than 200 lph) plastic sprinklers.

• Supplied as an assembly including PE/Vinyl tubing, connector set, M.S. rod of required length.

Applications:

• Recommended for the irrigation of open field crops like potato, leafy vegetables, cotton, oil seeds, pulses, cereals, etc.

• Specially suitable for light, sandy soil.

Selecttion Chart for Rainport™ MS Assemblies

Selection Chart for Rainport™ PS Assemblies
