Features and Specifications:
-
Heavy duty construction.
-
Most suitable for a variety of climates like
tropical, temperate and humid climates as in India.
-
Light in weight and easy to install.
-
Long wear life and low maintenance.
-
Uniform distribution profile with adjustable
jet breaker arrangement.
-
Better pattern coverage & good performance
in windy conditions.
-

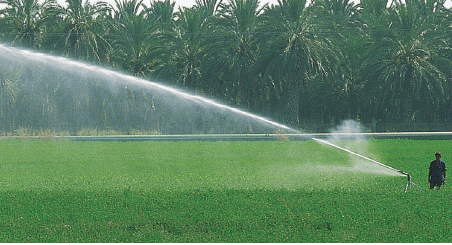

Suitable for both solid set field irrigation
and mechanically moved (centre pivot etc.) systems.
-
Various interchangeable nozzles provide better
control in watering and irrigation of desired area and crops.
-
Reduced risk of structural damage of soil and
delicate plants due to evenness and lightness of watering.
-

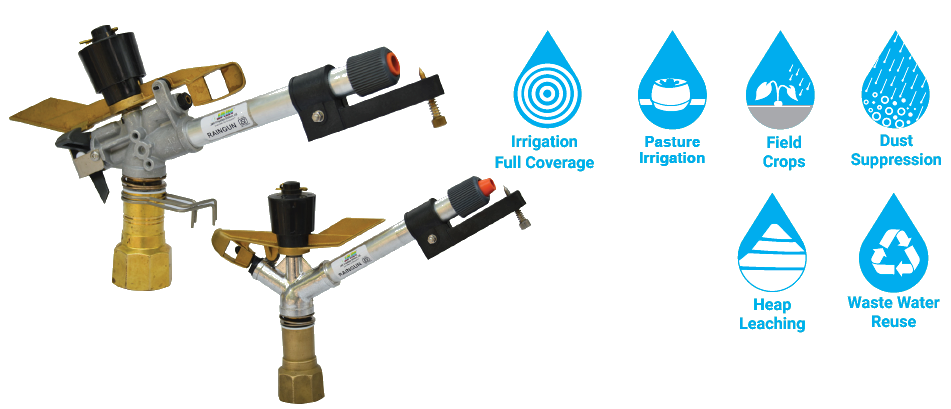

Available in full circle & part circle models.
|
Applications:
-
Recommended for field crops like sugarcane,
pulses, oil seeds, cereals, tea, coffee, and vegetables.
Ordering Specifications:
Example:

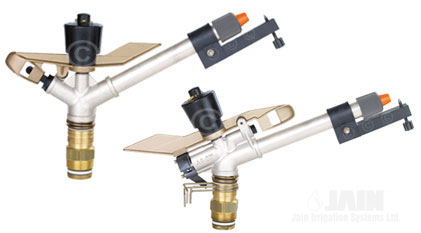

D163N08 - This code representsMedium Volume
Rain Gun model 163 with 8 mm nozzle.
Note: If required additional nozzles can be supplied as a special order.
Please specify nozzle number while ordering. |
Performance Chart for Model 162 & 163
Trajectory - for 162 - 30º, for 163 - 23º
| *Pressure |
Nozzle Ø 8 mm |
Nozzle Ø 10 mm |
Nozzle Ø 12 mm |
Nozzle Ø 14 mm |
Nozzle Ø 16 mm |
| (kg/cm²) m |
Radius
(m) |
Discharge
(l/s) |
ppt. rate
m |
Radius
(m) |
Discharge
(l/s) |
ppt. rate
m |
Radius
(m) |
Discharge
(l/s) |
ppt. rate
m |
Radius
(m) |
Discharge
(l/s) |
ppt. rate
m |
Radius
(m) |
Discharge
(l/s) |
ppt. rate
m |
| 2.00 |
19.5 |
1.37 |
0.17 |
21.5 |
1.89 |
0.19 |
23.0 |
2.52 |
0.23 |
24.0 |
3.27 |
0.27 |
24.50 |
4.14 |
0.32 |
| 3.00 |
22.0 |
1.67 |
0.16 |
24.0 |
2.31 |
0.19 |
26.0 |
3.09 |
0.22 |
27.5 |
4.01 |
0.25 |
28.50 |
5.07 |
0.29 |
| 4.00 |
24.0 |
1.93 |
0.15 |
26.5 |
2.67 |
0.18 |
28.5 |
3.57 |
0.21 |
30.0 |
4.63 |
0.24 |
31.50 |
5.86 |
0.27 |
| 5.00 |
25.5 |
2.16 |
0.15 |
28.5 |
2.98 |
0.17 |
30.5 |
3.99 |
0.20 |
32.0 |
5.18 |
0.24 |
33.50 |
6.55 |
0.27 |
| 6.00 |
- |
- |
- |
- |
- |
- |
32.5 |
4.37 |
0.19 |
33.5 |
5.67 |
0.23 |
34.50 |
7.17 |
0.28 |
Note: The Performance data are based
on ideal test conditions and may be adversely affected by wind,
poor hydraulic entrance.
* The pressure refers to pressure at nozzle.
Note: For ease of installation and quick
shifting of sprinkler systems, Quick-Connect® PE Piping Systems
are highly recommended.
For more details please refer Quick-Connect® PE Pipes & Fittings Pages.
Related Link : Raingun Installation Option |
