Raingun Installation Options

Permanent System:

In permanent system of installation raingun riser stands are permanently fitted to solid set pipeline network.

Riser can also be supported by cement concrete block around the riser.

Semipermanent System:

In semipermanent system pipeline network can be permanent and raingun riser stand or only raingun shifted from one location to other.

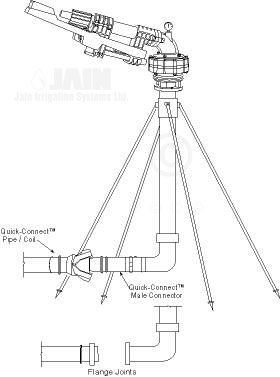

Raingun riser stand can be made detachable by using HDPE Quick-Connect^® male connector at riser end and Quick-Connect^® female connector at pipe end.

HDPE pipe in coil/hose of required size & length attached with G.I. insert joint on one end and Quick-Connect^® female joint on the other end, can also serve as the pipe network.

Alternatively, raingun alone can be shifted over permanently installed risers using quick release key and/or quick coupling valve.

Shiftable System:

In shiftable system entire pipeline network along-with raingun riser stand and raingun can be shifted from one location to another.

Easily detachable Quick-Connect^® pipes are used for this purpose. Quick-Connect^® pipes can be connected to raingun riser stand using male connector. Flexible HDPE coil/hose can also be used in shiftable system.

Raingun trolly can be used for easy movement of raingun from one place to other.
