Features and Specifications:
-
The double purpose emitter for misting & irrigation over propagation benches.
-
Uniform coverage.
-
Ideal droplet size prevents drift of excessively fine mist.
Coloured nozzles for various flow rates.
No dripping during operation.
Undisturbed and symmetrical water distribution (no deflection or “dead corners”).
Can be fitted with Leakage Prevention Device (LPD) for perfect pulsed operation. -
Operating pressure: 2 - 4 kg/cm² (28.44 - 56.88 psi).
-
Flow rate: 30 - 44 lph (see performance chart).
-
Wetted diameter: 1.2 m.
-
Filtration requirements: 100 microns.
|

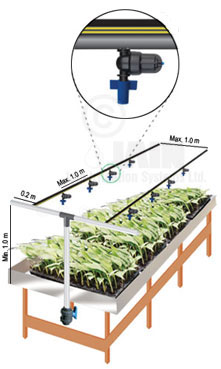

Applications:
-
Height of units above bench: 1.0 - 1.2 m.
-
Maximum spacing between units on lateral: 1.0 m.
-
Maximum spacing between laterals: 1.0 m.
-
Maximum distance of lateral from bench edge: 0.2 m.
|
