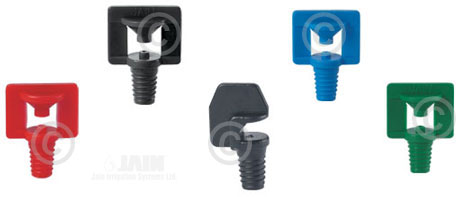

J-Jets

Features and Specifications:

• Fan type spray jet giving fine droplets & uniform distribution.

• Available in full and half circle spray pattern.

• Uniform coverage, gentle precipation

• Self threaded inlet.

• Easy to install with different mounting options like,
  a. Clip Stake for J-Jets / Foggers/ Misters (Code : DCSJ) with rigid risers.
  b. Stake for Modular / J-Jets / Foggers / Misters (Code: DSJF4/DSJF8).
  c. Square Stake for J-Jets / Foggers / Misters (Code : DSSJ)

• Jet stake assembly including stake, 6mm OD extension tubing or vinyl tubing (0.5 or 1.0 m) and 4mm take-off avilable on demand.

• Nominal operating pressure 1 kg/cm² (14.22 psi).

• Minimum filtration requirement - 100 micron.

Applications:

• Useful for irrigation of orchards, nurseries, vineyards, green houses.

• Suitable for irrigation of delicate plants such as flowers, vanilla etc.

• Suitable for irrigation of mature large trunk-trees or trees having wide spread root zone.

• Useful to maintain adequate micro environment in the canopy area.

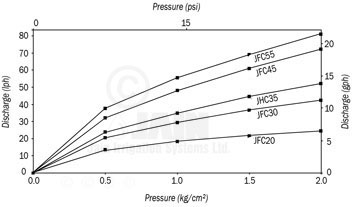

Performance Chart:

Code	Spray Pattern / Nozzle (mm)	Emitter Exponent (x)	Flow Coefficient (k)	Pressure		Throw		Discharge
				kg/cm²	psi	m	ft	lph	gph
DJFC20	0.67	0.44	18.00	0.5	7.11	0.58	1.9	13	3.5
				1.0	14.22	0.70	2.3	18	4.8
				1.5	21.33	0.73	2.4	21	5.7
				2.0	28.44	0.73	2.4	24	6.4
DJHC30	0.87	0.52	29.35	0.50	7.11	0.67	2.2	20	5.4
				1.0	14.22	0.73	2.4	29	7.8
				1.5	21.33	0.76	2.5	36	9.6
				2.0	28.44	0.76	2.5	42	11.2
DJFC45	1.10	0.59	47.81	0.50	7.11	0.85	2.8	32	8.4
				1.0	14.22	0.88	2.9	48	12.6
				1.5	21.33	0.91	3.0	61	16.1
				2.0	28.44	0.95	3.1	72	19.0
DJFC55	1.20	0.55	55.00	0.50	7.11	0.95	3.1	38	9.9
				1.0	14.22	1.01	3.3	55	14.6
				1.5	21.33	1.01	3.3	69	18.2
				2.0	28.44	1.04	3.4	80	21.3
DJHC35	1.00	0.58	34.76	0.5	7.11	0.88	2.9	23	6.2
				1.0	14.22	0.91	3.0	35	9.2
				1.5	21.33	0.95	3.1	44	11.6
				2.0	28.44	0.95	3.1	52	13.8

Note: Tested under standard test conditions with nozzle positioned at 20 cm above ground.

Ordering Specifications:

Example: DJFC45 - This code represents J-Jets having full circle spray pattern with discharge 45 lph.
