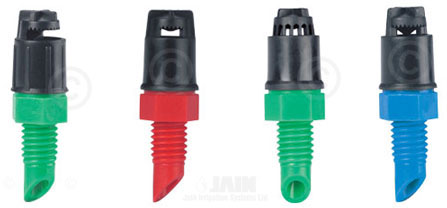

Mini Spray Jets™

Features and Specifications:

• Manufactured from high quality polymers to achieve wear resistance and longer trouble free performance.

• Stream jet pattern covers wide area.

• Precision moulding ensures uniform distribution.

• Available in five spray pattern and five colour coded nozzle sizes to make it suitable for variable field conditions.

• Lower maintenance, no moving parts/ seals to wear out.

• Wide surface water distribution provides advantages in areas where soil composition has poor lateral movement.

• Low spray profile minimizes water on foliage.

• Nominal operating pressure 1 kg/cm² (14.22 psi).

• Easy to install with different mounting options like,
  a. Clip Stake for J-Jets / Foggers / Misters (Code: DCSJ) with rigid riser.
  b. Stake for Modular / J-Jets / Foggers / Misters (Code: DSJF4 / DSJF8).
  c. Square stake for J-Jets / Foggers / Misters (Code: DSSJ)

• Mini Spray Jet stake assembly including micro jet, 6 mm OD extension tubing (0.5 m or 1.0 m long) and take off available on demand.

• Minimum filtration requirement - 100 micron.

Applications:

• Useful for irrigation of orchards, nurseries, vineyards, green houses.

• Suitable for irrigation of plants having widespread root zone.

• Useful to maintain adequate micro environment in the canopy area.

Performance Chart:

Reference Code	Nozzle Colour / Size (mm)	Emitter Expon.	Flow Coefficient.	Pressure		Discharge		Spray Pattern
		(x)	(k)*	kg/cm²	psi	lph	gph	60º x 2 (Orange)	140º x 2 (Brown)	180º (Terra-cotta)	270º (Yellow)	360º (Black)
DMSJBK	Black / 0.6	0.50	16.2	0.5	7.11	11.5	3.0	0.8	0.8	1.0	1.2	1.2
				1.0	14.22	16.2	4.3	1.1	1.1	1.3	1.4	1.4
				1.5	21.33	20.0	5.3	1.3	1.3	1.5	1.6	1.6
				2.0	28.44	23.0	6.1	1.4	1.4	1.6	1.9	1.8
				2.5	35.55	25.5	6.7	1.5	1.5	1.7	2.1	2.0
DMSJBL	Blue / 1.0	0.50	33.2	0.5	7.11	23.5	6.2	1.1	1.2	1.3	1.4	1.4
				1.0	14.22	33.2	8.8	1.8	1.6	1.7	1.9	1.9
				1.5	21.33	40.7	10.8	2.2	1.9	2.0	2.3	2.3
				2.0	28.44	47.0	12.4	2.5	2.1	2.2	2.7	2.6
				2.5	35.55	52.6	13.9	2.7	2.2	2.3	2.9	2.8
DMSJGN	Green / 1.3	0.50	56.1	0.5	7.11	39.7	10.5	1.4	1.6	1.7	1.8	1.8
				1.0	14.22	56.2	14.9	2.0	2.1	2.2	2.4	2.4
				1.5	21.33	68.8	18.2	2.4	2.5	2.6	3.0	2.9
				2.0	28.44	79.5	21.0	2.7	2.8	2.8	3.4	3.3
				2.5	35.55	88.9	23.5	2.9	3.0	3.1	3.7	3.6
DMSJRD	Red / 1.5	0.50	78.4	0.5	7.11	55.4	14.7	1.6	1.9	2.0	2.1	2.1
				1.0	14.22	78.4	20.7	2.2	2.4	2.6	2.8	2.8
				1.5	21.33	96.0	25.4	2.7	2.8	3.1	3.5	3.4
				2.0	28.44	110.9	29.3	3.1	3.1	3.5	4.0	3.9
				2.5	35.55	124.0	32.8	3.4	3.3	3.8	4.4	4.3
DMSJWH	White / 2.3	0.50	142.4	0.5	7.11	100.7	26.6	2.1	2.1	2.2	2.3	2.3
				1.0	14.22	142.4	37.7	3.0	2.5	2.9	3.0	2.9
				1.5	21.33	174.5	46.2	3.8	2.8	3.5	3.7	3.5
				2.0	28.44	201.5	53.3	4.3	3.0	4.0	4.2	4.0
				2.5	35.55	225.2	59.6	4.6	3.1	4.4	4.5	4.4

Note : Tested under standard test conditions with nozzle positioned at 20 cm above ground.

Ordering Specifications:

Example: DMSJGN360 - This code represents Mini Spray Jet™ having green coloured nozzle and with full circle (360º) spraying pattern.
