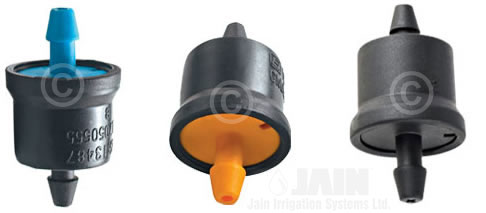

Mini Inline® Emitter

Features and Specifications:

• Manufactured from virgin plastic for stable performance.

• Factory sealed emitter.

• Turbulent flow-path with wide cross sectional area makes the dripper clog resistant.

• Narrow cross shaped inlet acts as a filter.

• Coloured base facilitates easy identification of flow rate.

• UV stabilised. No environmental effects.

• Barbed connection suitable for 4mm (0.157 inch) ID tube on both sides facilitates looping of drippers around trunk of the tree. Helps to avoid dispositioning of emitters.

• Manufacturing coefficient of variation, CVm ≤ 3%. Higher field emission uniformity.

• Facilitates loop type installation.

• Required punch diameter 2.9 mm.

• Minimum filtration requirement - 100 micron.

Applications:

• Recommended for fruit orchards requiring multiple drippers around the trunk of the tree, to cover widespread root zone.

Technical Specification:

* At operating pressure of 1kg/cm² (14.22 psi).

Ordering Specifications:

Example: DMIL02 - This code represents Mini Inline® Emitter having 2 lph discharge.

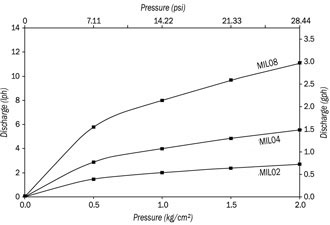

Performance Graph:

Note: Test are under standard test conditions.
